Hardware details:

This was inspired by this project although the hardware and software were completely redesigned. Mine runs over LoraWAN instead of 2.4ghz, doesn't need a nearby base station, and manages power via MCU sleep instead of external RTC control. Transmitting at a relatively efficient spread factor (SF7BW125) I am seeing at least 10km of range for +20dbm transmit.

System Overview:

Device Purpose Comments
LoraWAN Dev Board Core microcontroller runs the software and has the radio to transmit the data Switched to an ESP32 running arduino-lmic. This version is more often in stock, very similar. needs a solar panel charge module. using a custom BQ2412 PCB caution, DFN, challenging to hand-solder. Adafruit bq24074 is similar, CN3791-based units are readily available. This board runs the network code, does the encryption/decryption/authentication, and has logic to support firmware updates for itself and the avr.
GPS Module Precise timekeeping. Location if it floats away. Maybe current direction. Not strictly required. I had hoped to use the altitude output but it is not particularly precise or repeatable. This draws more power than the rest of the system combined.
BMP390 Barometric Pressure Sensor The best way to measure small vertical displacement over short time scales is changes in atmospheric pressure. A more common BMP180 would work but the BMP390 is more precise.
Battery Battery with the correct connector for dev board (Molex PicoBlade 1.25) Preliminary data suggests a smaller battery would suffice. Measurements every 2 minutes with GPS cost 15ma. This provides lots of margin since the solar cell will probably not provide much current on rainy days.
Solar Cell Powers the system. Empirically provides up to about 60ma peak and around 20-30ma for much of the day on clear days. Now running 3 of these in paralell on v1 of the housing as a single cell did not appreciably charge the battery on a rainy day. Getting up to 150ma
INA2331 3-channel current sensor Optional. Provides data on the solar panel performance and makes it easy to tune and verify the power saving logic. I would actually rather use an INA233 which has an integrated accumulator but those are unobtainium due to the pandemic.
Antenna 915mhz antenna Chosen to sit a bit higher off the water it is kind of top heavy. The range was way better than expected (40dbm of link budget left) so I will probably drop to a +3 or +5 dbi antenna and drop the transmit power.
UFL to rp-sma connects the antenna to the dev board verify that both the antenna and the pigtail are either SMA or RP-SMA
Custom watchdog board power monitoring, battery charging, system reset/power cycle attiny1614 based board, attached to the ina3221 breakout
Custom avr64db32 board Has a socket for the esp32 dev board. avr64db32 runs the data collection logic and periodically wakes the esp for transmission
GY-87 10DOF - MPU6050 Removed Seemed like a reasonable way to measure wave induced motion. Many hours later I gave up. If you get this working...
LoraWAN Dev Board Removed Replaced with an esp32 version. Core microcontroller runs the software and has the radio to transmit the data This version was chosen instead of the esp32 as it integrates a solar charger and is low power. It also has external power control circuitry to allow switching the GPS on and off to save power. It is also based on the SX1262 which supports listen-before-talk unlike the more common SX1278. The major caveat is it is not supported by LMIC, but the heltec library works fine. This version integrates the GPS for the soldering-adverse but probably needs external solar panel circuitry
GPS Module Removed Replaced with a neo8m version. Precise timekeeping. Location if it floats away. Maybe current direction. Not strictly required. I had hoped to use the altitude output but it is not particularly precise or repeatable. This draws more power than the rest of the system combined. At some point I'll reduce the frequency with which the GPS is switched on. There are better GPS modules out there, but not available immediately off Amazon.

Change Log

Assembly Revision Changes
Firmware 07/07/22 (8pm)
  • adjusted GPS settings to 2-minute interval, 2 second keep on after lock, will dramatically reduce power (from 80 second with 6-second post-lock).
  • added on-device power-averaging over the GPS cycle to produce cleaner power graphs (previous power readings were over the 15-second network cycle)
  • now reporting GPS search time
Firmware 06/25/22
  • beacons are now transmitted across 8 channels most of the time and 37 channels every 8th transmission. This is expected to increase power usage noticably but it is clear there is plenty of margin (at least in the summer).
  • data from the beacons is being used to adjust the link frequency
  • gps now set to keep on for 6 seconds
  • join timeout added
Hardware 06/25/22
  • Anchor line was severed (probably by a boat), buoy turned up in Kingston and was returned (thank you!)
  • Added hot glue to render the reset switches inoperative
  • Added hot glue hold boards in place
  • Replaced the anchor and safety buoy
  • Re-painted
Firmware 06/10-11/22
  • added the ability to dynamically change spreading factors to increase radio robustness
  • added a 16-byte beacon on SF12 to announce the correct settings. Responses are supported also at sf12 to allow changes under adverse conditions.
  • tweaked gps logic, staying on for 10,5 3 seconds after lock to increase accuracy<
  • with the SF12 beacon or the use of slower than SF7 speeds need to drop the transmit power to 17 for some packets to stay within the SX1276's 1% duty cycle at +20 limit.
  • join timeout added
Firmware 06/04/22
  • final tweaks successfully deployed via OTA
  • fixed bug where esp build timestamp was not set
  • far less agressive about rebooting the esp from the avr
  • tweaked bmp390 settings, now using 16x oversampling and 100hz collection
  • Mostly due to the support for OTA, added AES-GCM encryption as well as a SHA256 hash to the network layer.
  • Mixed LoRaWAN and LoRa. Still sending the 24-byte every ~2 minutes data over LoRaWAN. But now sending all the raw measurements every 16 seconds over raw LoRa.
  • New GPS control algorithm tries to obtain a fresh GPS datapoint ever 60 seconds but limits duty-cycle to 1/8 if the lock is slow.
Electronics v1.1 06/04/22 Added an i2c fram connected to the esp for LoRaWan session storage. Replaced the ewdt board that got wet with a new copy.
External Housing v1.2 06/04/22 Drilled a 12-mm hole in the original housing and mounted the 1.1 vent. Installed a shelf. Not entirely sure what caused the leak so put the electronics in an inner ziplock bag. Also added a moisture absorber and a hose to direct any leakage from the vent to the absorber. Repositioned buoy 2m shallower as it was slightly submerged at high tide in high waves.
Electronics v1.0 05/22/22

Split appliation into 3 MCUs

  • LoRa board is now a Heltec Wireless Stick Lite (esp32). The straw that broke the camel's back on the cubecell was the inability to switch between raw LoRa and LoRaWan without re-joining. This draws ~20ma when awake and ~40ma transmitting. The ESP SPI driver makes power management not work well.
  • The main application logic now runs on an avr64db32. This wakes up at 16hz to collect samples continually. It wakes the ESP every ~16 seconds to transmit data. This chip draws ~1-2ma at 4mhz.
  • An attiny1614 is used as a watchdog. It runs an i2c slave, and is configured to power-cycle the other components if the system is not making progress for 90 seconds. I discovered late that SLEEP_MODE_STANDBY seems to make the I2C slave unreliable and so need to run this at 1Mhz with SLEEP_MODE_IDLE. Unfortunately this chip draws more power (3ma) than the AVR64DB32. A future revision will switch to 2x AVR64DB32
  • Since the Wireless Stick Lite doesn't include solar charging, a BQ24210DQCR charger is being used. This has a not-quite MPPT version of MPPT and seems to harvest power far more efficiently. Have seen up to 168ma off the solar panels, although ~130 is a more common peak.
  • The GPS was switched to a NEO-8M.
Firmware 05/22/22

new features

  • Complete rewrite for new hardware. (That was the goal of moving to esp32).
  • Continuous data collection. Raw data transmitted over raw lora (256x samples per 16-second cycle).
  • OTA firmware updates! AVR firmware takes 35 seconds. ESP firmware takes ~3.5m.
  • Mostly due to the support for OTA, added AES-GCM encryption as well as a SHA256 hash to the network layer.
  • Mixed LoRaWAN and LoRa. Still sending the 24-byte every ~2 minutes data over LoRaWAN. But now sending all the raw measurements every 16 seconds over raw LoRa.
  • New GPS control algorithm tries to obtain a fresh GPS datapoint ever 60 seconds but limits duty-cycle to 1/8 if the lock is slow.
External Housing v1.1 05/22/22 Now using a gore-tex vent instead of the silicone membrane. Also the top now has a shelf to secure the components.
External Housing v1 03/12/22 3d-printed version deployed. Supports 3 solar cells and has a USB port that requires only partial disassembly.
Electronics v0.2 03/12/22 Removed resistors for unneeded LEDs on INA3221 board.
Firmware v0.03 03/12/22
  • Enabled WDT (which may increase current draw).
  • Switched measurement to a single data collection pass.
  • Changed threshold for 2m transmission from 4.1V to 4.0V.

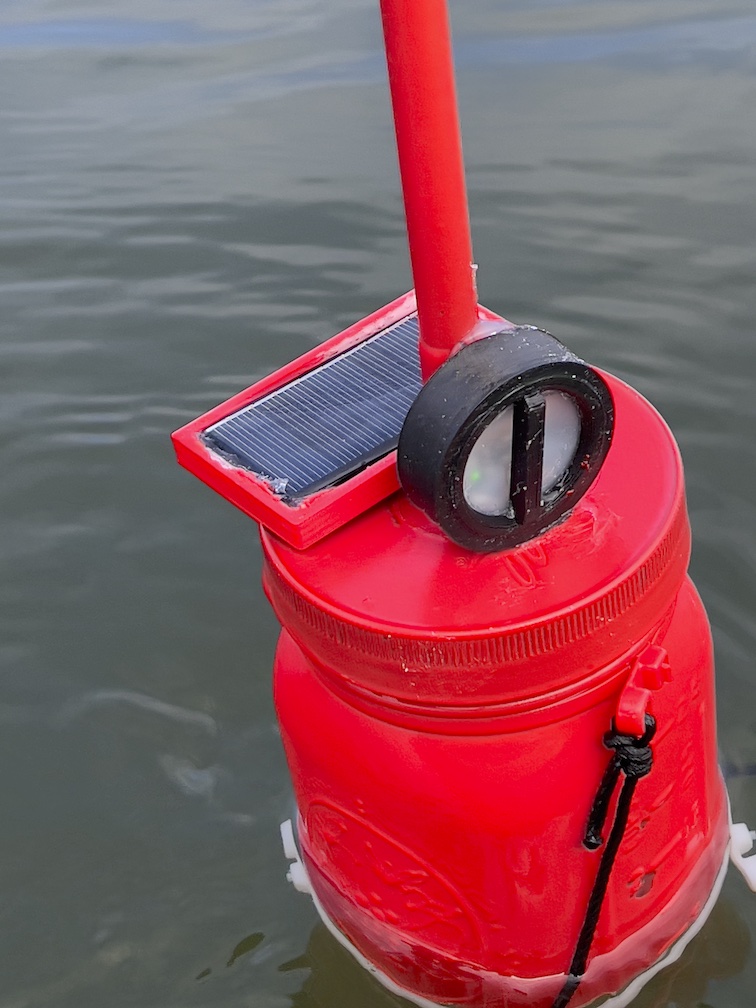

External Housing v0.1 03/05/22 Mason jar version deployed. Single solar cell. Ran 3/5/22-3/7/22 before water ingress killed the pressure sensor (and shorted out the i2c bus).

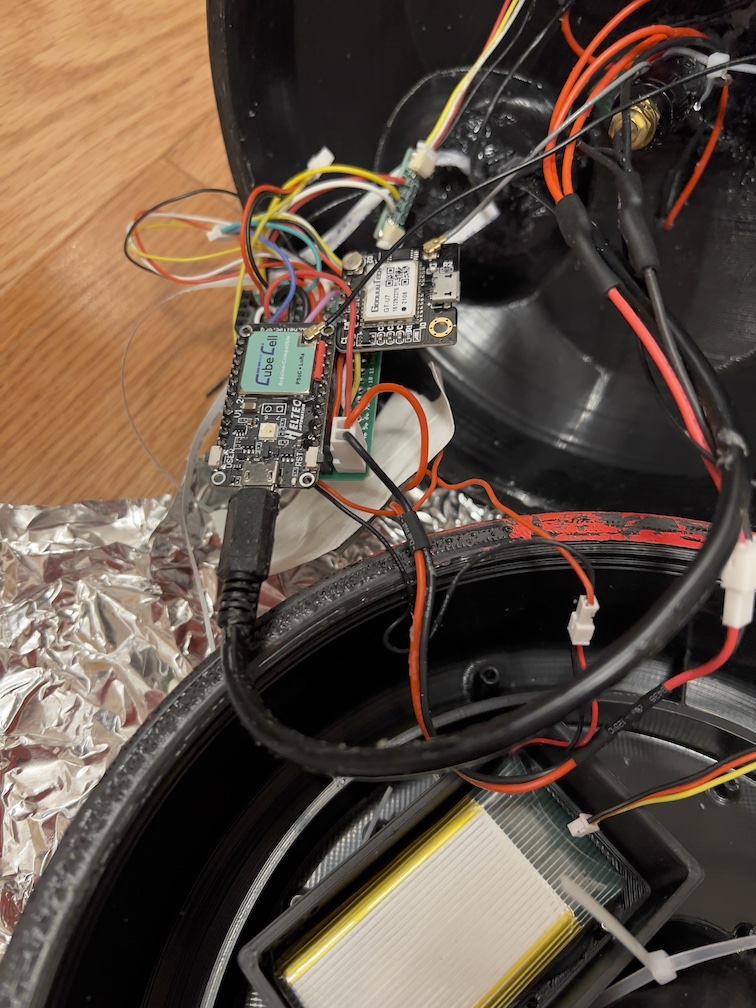

Electronics v0.1 03/05/22 Removed GY-87

Other useful items

Item Purpose Comments
Silicone Pressure membrane Allows the pressure inside a rigid container to vary
Silicone Sealant Keeps saltwater out Seal the antenna and pressure membrane.
PicoBlade M-F Cable Kit Battery connector (cut in half), battery monitor Useful kit to assemble your own 1.25mm cables. This kit is M-F. M-M version
JST-SH kit Sparkfun QWIIC/Adafruit stemma cable kit 1.0mm Pre-crimped wires and housings. Allows threading between smaller holes. Can cut in half and solder end to device.
QWIIC Adapter Adding qwiic ports to i2c devices, acting as a F-F adapter Also available here for a less silly price.
Silicone wire 28-awg wire connecting random things together
Hard Buoy Leaving the anchor in the water also keeps the buoy afloat if it leaks
Weighted Line Attach buoy to anchor sinks to avoid getting caught in props. Attached to a cinder block as a cheap anchor.
Mason Jar Cheap pressure housing While I was debugging the 3d-printed one
Lids Drillable rustproof lids While I was debugging the 3d-printed one
